Sale!

3M Fire Barrier Composite Sheet, Model: CS-195+

৳  65,000.00

Recommended Applications

  • Seal penetrations through fire-rated walls and floors
  • Firestop penetrations including cable trays, cable, piping and large blanks
  • Multiple component installations where heat build-up and derating are concerns
  • Shield conduit, HVAC ductwork, panels, valves and vital heat-sensitive process equipment
  • Fire-resistive and smoke seal for any shape opening in concrete block or slabs
  • Protect cable drop-outs, junction boxes and cabinets
  • Intermittent firestop in horizontal and vertical cable tray runs
  • In conjunction with 3M™ Fire Barrier Sealant or Moldable Putty MP+



Minimum Order 1 Sheet

Payment Type: 50% advance and 50% balance delivery time have to complete payment,

Specification/Parameter:

1. Application : Commercial Construction

2. Brands  : 3M

3. Case Quantity  :  1.0 Bags per Case

4. Fire Rating   : Up to 4 hours

5. Product Color  : Silver

6. Product Form  : Composite Sheet

7. Size: 914mm X 914mm

8. Thickness: 7.696 mm

9. Weight : 14Kg



Replacement /Change: if any major problem , we will be service in warranty time

Product return: N/A

Payment Guarantee: in case of product replacement or change or Cancel, you get your payment in the 3 working days (Not accept the Holidays)

Delivery Time: 20-35 days ( this is foreign goods so delivery time can up and down as condition )

How you Make Order: Click on ” ORDER NOW” write your information then confirm order.

Important: এই পণ্য টি বিদেশ থেকে ইম্পোর্ট করতে হবে , সুতারং ডেলিভারি টাইম প্রয়োজন ১৫ থেকে ৩০ দিন , এবং পেমেন্ট 50% অগ্রিম দিতে হবে ও বাকি 50% পণ্য ডেলিভারির সময় পরিশোদ করতে হবে। এবং এই পণ্য টি ক্যাশ অনডেলিভারি হবে না। সুতারং পণ্য টি অর্ডার করার পূর্বে অবশ্য যোগাযোগ করবেন। what apps: +8801752490360

Description

Product Name: 3M Fire Barrier Composite Sheet, Model: CS-195+

Model Number: CS-195+

SKU: STC216

Brand : 3M

Price Term per Sheet@ 914mm x 914mm x7.8mm

Country of Origin: UK

Delivery from China/India

Interdiction .

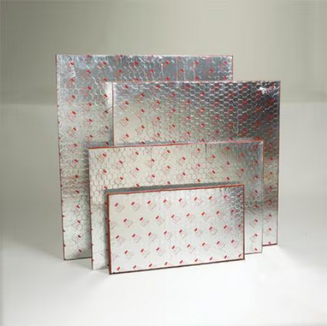

3M™ Fire Barrier Composite Sheet CS-195+ is a lightweight intumescent firestop that combines four components into a single system to help slow the spread of fire, smoke and noxious gases. Sheets combine 30-gauge steel, intumescent material, wire mesh and aluminum foil and are easy to handle and install with common trade tools. They are firestop tested for up to 4 hours of fire protection.

Firestopping in Nearly Any Size and Shape
For larger openings and penetrations where putties and strips alone aren’t enough, use 3M™ Fire Barrier Composite Sheet CS-195+, a one-part firestop system that installers can cut and form to exact sizes — no mixing or damming required. These sheets are easily installed using common tools and fasteners. Ideal for firestopping penetrations such as cable trays and conduit, the sheets feature intumescent material bonded to 28-gauge galvanized steel, reinforced on its facing side with hexagonal wire mesh and covered in aluminum foil.

This combination of organic/inorganic materials makes these composite sheets a reliable firestop in tested and listed systems, new and retrofit. These materials also make an excellent thermal conductor, helping to dispel built- up radiant heat to preserve process and control equipment and help minimize cable derating concerns. 3M™ Fire Barrier Composite Sheet CS-195+ is firestop tested up to 4 hours in accordance with ASTM E 814 (UL 1479).

Recommended Applications

  • Seal penetrations through fire-rated walls and floors
  • Firestop penetrations including cable trays, cable, piping and large blanks
  • Multiple component installations where heat build-up and derating are concerns
  • Shield conduit, HVAC ductwork, panels, valves and vital heat-sensitive process equipment
  • Fire-resistive and smoke seal for any shape opening in concrete block or slabs
  • Protect cable drop-outs, junction boxes and cabinets
  • Intermittent firestop in horizontal and vertical cable tray runs
  • In conjunction with 3M™ Fire Barrier Sealant or Moldable Putty MP+



Minimum Order 1 Sheet

Payment Type: 50% advance and 50% balance delivery time have to complete payment,

Specification/Parameter:

1. Application : Commercial Construction

2. Brands  : 3M

3. Case Quantity  :  1.0 Bags per Case

4. Fire Rating   : Up to 4 hours

5. Product Color  : Silver

6. Product Form  : Composite Sheet

7. Size: 914mm X 914mm

8. Thickness: 7.696 mm

9. Weight : 14Kg



Replacement /Change: if any major problem , we will be service in warranty time

Product return: N/A

Payment Guarantee: in case of product replacement or change or Cancel, you get your payment in the 3 working days (Not accept the Holidays)

Delivery Time: 20-35 days ( this is foreign goods so delivery time can up and down as condition )

How you Make Order: Click on ” ORDER NOW” write your information then confirm order.

Important: এই পণ্য টি বিদেশ থেকে ইম্পোর্ট করতে হবে , সুতারং ডেলিভারি টাইম প্রয়োজন ১৫ থেকে ৩০ দিন , এবং পেমেন্ট 50% অগ্রিম দিতে হবে ও বাকি 50% পণ্য ডেলিভারির সময় পরিশোদ করতে হবে। এবং এই পণ্য টি ক্যাশ অনডেলিভারি হবে না। সুতারং পণ্য টি অর্ডার করার পূর্বে অবশ্য যোগাযোগ করবেন। what apps: +8801752490360
